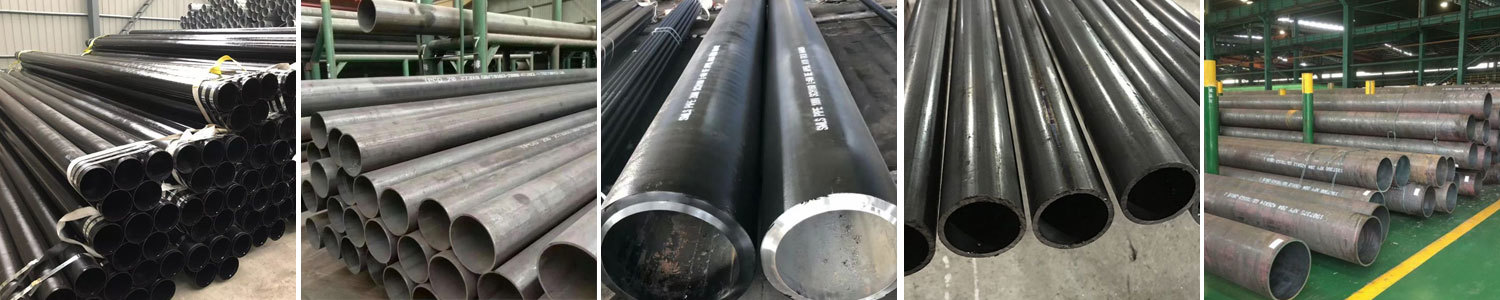

Structural Steel Pipe. A wide range of applications rely on structural steel pipe for strength and stability. Gnee steel supply welded and seamless pipe for structural applications to customers in all industries. As a leading steel pipe supplier, Gnee steel offers a large inventory of pipe and tubing sizes from 1/8” NPS to 48” NPS.

Classification :

Seamless Pipe

WhatsApp : +8619963586147

E-mail : 01@metalmaterial.top

Related Products
Online Message

PRODUCT DETAILS

Keywords:

Structural Steel Pipe

Product introduction

Structural Steel Pipe

Pipe Type: Structural Pipe, Structural Seamless Pipe, Seamless Structural Pipe
Application: In Structural Engineering and Construction Industry

Specification: OD: 1/8'' ~ 26'' (10.3 ~ 660mm)

                          WT: SCH 10 ~ 160, SCH STD, SCH XS, SCH XXS

                          LENGTH: Fixed Length (5.8/6/11.8/12mtr), SRL, DRL

Standard: ASTM A53/A252/A500/A501, JIS G3444, EN 10210/10219

Ends: Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends

Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating

Packing: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

 Specification of Structural Steel Pipe

API 5L/ASTM A106 GR.B, Structural Steel Pipe
公称通径
DN		 外径OD(mm) SCH40(6m/5.8m) SCH40(6m/5.8m) SCH40(6m/5.8m)
壁厚WT 壁厚WT 壁厚WT
(mm) (mm) (mm)
1/4'' 13.7 2.24 3.02 /
3/8'' 17.1 2.31 3.2 /
1/2'' 21.3 2.77 3.73 4.78
3/4'' 26.7 2.87 3.91 5.56
1'' 33.4 3.38 4.55 6.35
1-1/4'' 42.2 3.56 4.85 6.35
1-1/2'' 48.3 3.68 5.08 7.14
2'' 60.3 3.91 5.54 8.74
2-1/2'' 73 5.16 7.01 9.53
3'' 88.9 5.49 7.62 11.13
3-1/2'' 101.6 5.74 8.08 /
4'' 114.3 6.02 8.56 13.49
5'' 141.3 6.55 9.53 15.88
6'' 168.3 7.11 10.97 18.26
8'' 219.1 8.18 12.7 23.01
10'' 273 9.27 15.09 28.58
12'' 323.8 10.31 17.48 33.32
14'' 355.6 9.53 11.13 19.05
16'' 406.4 9.53 12.7 21.44
18'' 457 9.53 14.27 23.83
20'' 508 9.53 15.09 26.19
24'' 610 9.53 17.48 30.96

Technical data

Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard Grade Chemical Composition (%) Mechanical Properties
ASTM A53 C Si Mn P S Tensile STrength(Mpa) Yield STrength(Mpa)
A ≤0.25 - ≤0.95 ≤0.05 ≤0.06 ≥330 ≥205
B ≤0.30 - ≤1.2 ≤0.05 ≤0.06 ≥415 ≥240
ASTM A106 A ≤0.30 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≥415 ≥240
B ≤0.35 ≥0.10 0.29-1.06 ≤0.035 ≤0.035 ≥485 ≥275
ASTM A179 A179 0.06-0.18 - 0.27-0.63 ≤0.035 ≤0.035 ≥325 ≥180
ASTM A192 A192 0.06-0.18 ≤0.25 0.27-0.63 ≤0.035 ≤0.035 ≥325 ≥180
API 5L PSL1 A 0.22 - 0.90 0.030 0.030 ≥331 ≥207
B 0.28 - 1.20 0.030 0.030 ≥414 ≥241
X42 0.28 - 1.30 0.030 0.030 ≥414 ≥290
X46 0.28 - 1.40 0.030 0.030 ≥434 ≥317
X52 0.28 - 1.40 0.030 0.030 ≥455 ≥359
X56 0.28 - 1.40 0.030 0.030 ≥490 ≥386
X60 0.28 - 1.40 0.030 0.030 ≥517 ≥448
X65 0.28 - 1.40 0.030 0.030 ≥531 ≥448
X70 0.28 - 1.40 0.030 0.030 ≥565 ≥483
API 5L PSL2 B 0.24 - 1.20 0.025 0.015 ≥414 ≥241
X42 0.24 - 1.30 0.025 0.015 ≥414 ≥290
X46 0.24 - 1.40 0.025 0.015 ≥434 ≥317
X52 0.24 - 1.40 0.025 0.015 ≥455 ≥359
X56 0.24 - 1.40 0.025 0.015 ≥490 ≥386
X60 0.24 - 1.40 0.025 0.015 ≥517 ≥414
X65 0.24 - 1.40 0.025 0.015 ≥531 ≥448
X70 0.24 - 1.40 0.025 0.015 ≥565 ≥483
X80 0.24 - 1.40 0.025 0.015 ≥621 ≥552


Structural Steel Pipe Chemical Composition and Mechanical Properties

Standard Grade Chemical Composition Mechanical Properties
C Si Mn P S Cr Ni Cu Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%)
GB/T8163 10 0.07-0.14 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 ≤0.15 ≤0.25 ≤0.25 335-457 ≥205 ≥24
20 0.17-0.24 0.17-0.37 0.35-0.65 ≤0.035 ≤0.035 ≤0.25 ≤0.25 ≤0.25 410-550 ≥245 ≥20
Q345 0.12-0.20 0.20-0.55 1.20-1.60 ≤0.045 ≤0.045 - - - 490-665 ≥325 ≥21


Structural Steel Pipe Tolerance

Pipe types Pipe Szie(mm) Tolerances
Hot rolled OD All ±1% (min ±0.50mm)
WT All +15%, -12.5%
Cold drawn OD 6～10 ±0.20mm
10～30 ±0.40mm
30～50 ±0.45mm
>50 ±1%
WT ≤1 ±0.15mm
>1～3 +15% -10%
>3 +12.5% -10%


Structural Steel Pipe End

Plain End Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Plain End (Square Cut) Wall Thickness over 0.5 inch, including SCH XXS
Beveled End Wall Thickness less than 0.5 inch, including SCH STD & SCH XS
Couplings Outside Diameter equal or less than 2''
Thread Protection Outside Diameter over 4 inch

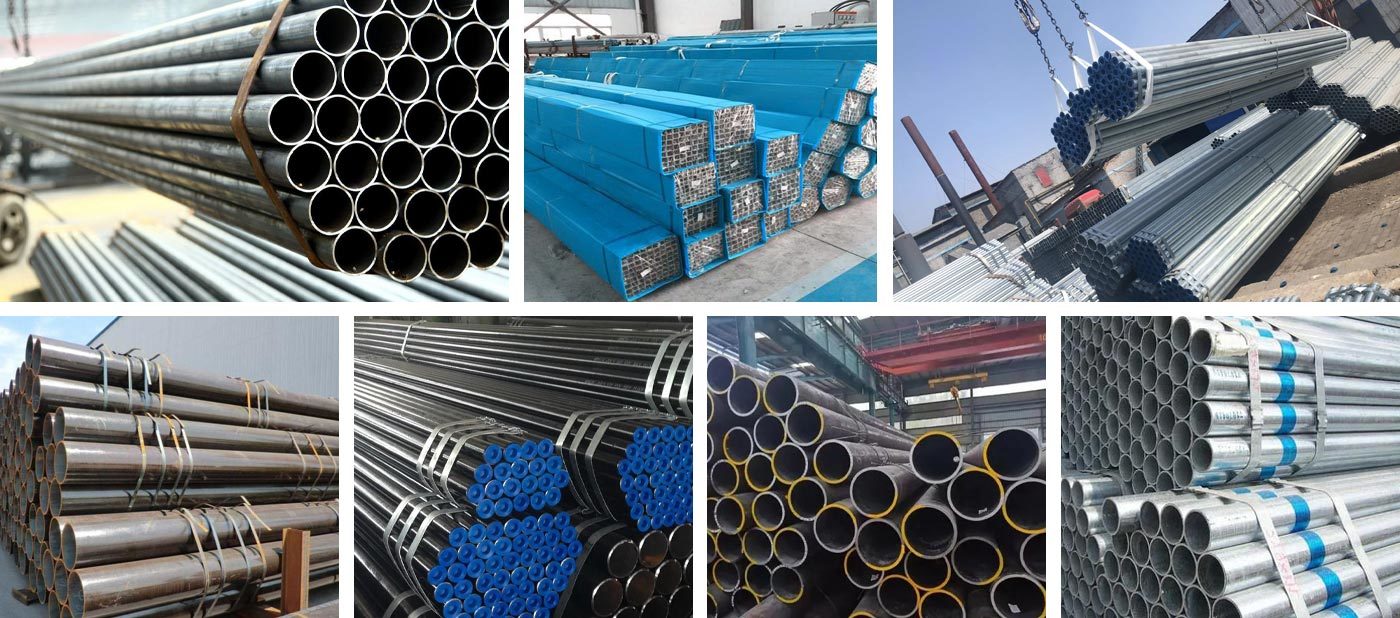

Packing And Delivery
